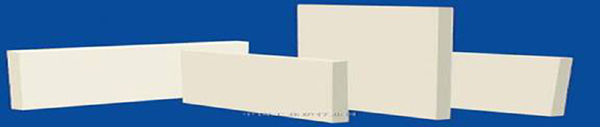

Ceramic fiber board
Description:
Ceramic fiber board is a kind of refractory fiber material board which has the standard thicknessit’s made by refractory fiber thick liquid and binderamong it the content of organic binder is very low. The ceramic fiber board is heat insulation products that possess the firm and self-supported strength quality. It uses different refractory fiberorganic and inorganic binder to mix according to different proportion to form different kinds of ceramic fiber board which have different work temperature. In some heating industrythe binder content of fiber board would appear to smoke under about 200~300℃ burningbut the smog would disappear soon.
Characteristics:
High temperature stability
Low thermal conductivity
Low thermal capacity
Hard quality and high glued strength
Anti heat shock and corroding
It could get in touch with fire directly
Easy to processcut and install
Application:
This kind of board can be used in the field of demanding strengthself-bearding weight and heat insulationit has the good anti destroyed function by machines
Ceramic industry
Furnace lines
Track of furnace
Glass industry
Heat insulation of pipes
Normal heat resistance material
Others heat insulation
|
|
RT |
STD |
HP |
LZ |
ZA |
|
HNB301 |
HNB302 |
HNB303 |
HNB304 |
HNB305 |
|
Classification Temperature(℃) |
1050 |
1260 |
1260 |
1400 |
1430 |
|
Color |
White |
Pure white |
Pure white |
Pure white |
Pure white |
|
Density (Kg/m3) |
250-300 |
250-300 |
250-300 |
250-300 |
250-300 |
|
Heating shrinkage(%)
(density300 for heating 24h) |
-4(1000℃) |
-3(1000℃) |
-3(1000℃) |
-3(1000℃) |
-3(1000℃) |
|
Thermal conductivity (W/m·k & density 285kg/m3) |
0.85(400℃)
0.132(800℃)
0.180(1000℃) |
0.85(400℃)
0.132(800℃)
0.180(1000℃) |
0.85(400℃)
0.132(800℃)
0.180(1000℃) |
0.85(400℃)
0.132(800℃)
0.180(1000℃) |
0.85(400℃)
0.132(800℃)
0.180(1000℃) |
|
Compression strength Mpa
(density 285kg/m3) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Specification(mm) |
L(1200x)W(1000)xT(10-75), L(900)xW(600)xT(10-75),
the other sizes are made according to customer`s demand |
|
